Announcing Project Remake!

Calling all remakers, upcyclers, found object artists, and refuse miracle makers! MAKE has teamed up with Schick, and today we’re launching the Project Remake Contest. We’re in search of the next great green maker. No fewer than FIVE winners will receive a MakerBot Replicator, and a Grand Prize winner will receive (in addition to a Replicator) an expenses-paid trip for two (and their winning project!) to World Maker Faire in New York City this September. So whether you de-solder legacy motherboards for their reusable components, build furniture out of reclaimed plastics, or fabricate sculpture from waste objects, go here to enter to win Project Remake!

Submissions will be open until May 14th. Projects may be functional, utilitarian, or simply beautiful. Projects will be judged against the following criteria:

  • Originality & Creativity
  • Eco-Friendliness
  • Feasibility
  • Media & Public Interest

Apologies to our international and fellow North American readers, but to be eligible to win, you must be a legal resident of one of the 50 US states or the District of Columbia, and 18 years of age or older at the time of entry. Complete rules can be found online here.





Tool Review: Diamond Matrix Polishing Pad Set


Last spring I got it in my head to make a concrete bowl with broken bottle glass aggregate. I had a bunch of blue and green glass bottles on-hand, and broke these up by submerging them in a big galvanized washtub and bashing them with a fence-post driver. I had a book with a broken-glass concrete recipe, and I mixed up a small batch and pressed it between two stainless-steel mixing bowls. I set the stacked bowls in a corner of the porch, covered them with a soaking-wet towel, covered that with a plastic garbage bag to hold in the moisture, and weighted everything down with a pair of cobblestones.  Here’s what the cast form looked like when I knocked it out of the mold a week later…

At this point, the instructions in the book I was working from advised the reader to “sand or grind the surface to expose the glass.”

I had no idea what I was in for.

I tried every kind of sandpaper in the toolbox, to nil effect: scrubbing a quarter-sized area for half an hour wouldn’t even begin to expose the glass aggregate beneath.  I bought some flap-wheel abrasive disks at the big orange store and mounted them on my heirloom Sears Craftsman auto-body grinder, and didn’t fare much better.  I tried sanding wet and sanding dry.   I even experimented with acid-etching.  The more aggressive carbide and diamond polishing media available from the local hardware outlets was all intended for use on floors.  It was rigid and flat and wouldn’t work on a curved surface without grinding facets all over it.

I found this set of eight “soft” polishing pads on Amazon for $50, and took a chance. The business side of each 4″ diameter pad consists of a polymer honeycomb that looks sort of like the bottom of a sneaker. The elastomer, whatever it may be, has industrial diamond grit embedded inside. In use, the matrix slowly wears away, exposing fresh grit. The back of each pad is covered with “loop” Velcro and marked with silver numbers indicating the pad’s grit size. The Velcro is also color-coded in case the numerals wear off, which hasn’t happened to mine yet. But it’s a nice detail, anyway.

The set also includes a medium-hard rubber pad holderwith black “hook” Velcro on one side and a 5/8-11 threaded brass insert. That’s a standard grinder arbor thread and it fit my old Model 315 perfectly.

I turned the bowl upside down and fit it over an old bar stool so I could work on it standing up. My first experience was not good. My grinder only has two settings. I flipped the switch to “HI,” plugged it in, turned it on, and started polishing. The pad quickly overheated, despite my diligent efforts to keep the bowl wet while I was working, and the cement binding the Velcro to the pad holder melted and failed.

Frustrated, I complained to the seller, and was pleasantly surprised by their response, which was to A) send me a free replacement holder, B) tell me how to fix the one I already had using rubber cement, and C) explain why it failed in the first place. The new one showed up in the mail three days later, but I still actually haven’t used it because the rubber cement fix worked great and held up fine once I slowed the grinder speed down. Which I did by switching to “LO” and using a universal motor speed controller from Harbor Freight.

With my equipment problems resolved, I set to with the grinder. At the lower speed, I was able to get away without using water. I spent about 10 hours working at the largest (50) grit size, just grinding away the so-called “cream” to expose the glass, and then worked down to smaller and smaller grits, spending about two hours each on 100, 200, 400, and 800 grits. There was a really striking improvement in the step from 400 to 800, and for a day or two I fully intended to polish the whole bowl all the way out to 6000 grit. But then I lost patience and just applied a polymer sealant (specifically Arrow-Magnolia International’s Glo-crete) inside and out. This provided a nice, shiny, “wet-look” gloss.

It was still a heckuva lot more work than I counted on, but I dunno how I would’ve done it at all without this set of pads. And it looks like even the 50 grit size still has quite a bit of life left in it, as you can see from the detail photo above, which was taken after the bowl was complete.

No part of the set bore any kind of manufacturer marketing, so I don’t know anything about where they come from besides the product link on Amazon and the seller website at GranitePolishingPads.com. They are marketed as “for granite counter tops,” and honestly I have no idea how well they perform in that application. But for curved surfaces, at the proper grinding speed, they have my unequivocal endorsement.

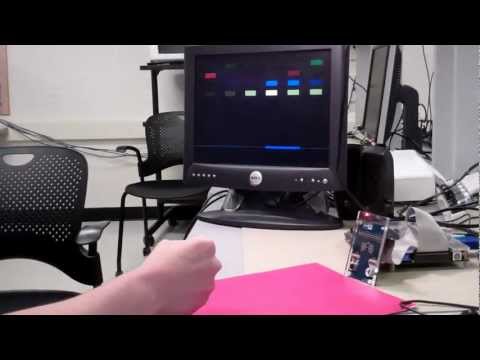

“Breakout” Game Controlled with Hand Gestures


ECE 5760 students Meng-Ling (Maxwell) Liu, Thu-Thao Nguyen and Yang Yang created a game called Hand Breaking Bricks. Rather than use a standard interface for their game, they decided to take on the challenge of using gestural control. From their site:

The TRDB_DC2 digital camera connected to DE2 board through an IDE cable is used for this game. We are provided the source code that handles basic functionality of the camera. Video frames captured by the camera are stored in an SDRAM buffer.
CCD_Capture: This module buffers the data coming from the CMOS sensor and generates the horizontal, vertical, and frame counter, along with the data and the valid signal. The generated frame counter is showned on the 7-segment displays.
RAW2RGB: In this module, the image data is translated from Bayer format into RGB format. Specifically, the image data is stored in the corresponding Red, Green, and Blue arrays.
Mirror_Col: This module is used for reversing left and right side of the captured image to match with the real situation.

You can learn more about their process with full documentation at Hand Breaking Bricks.

[via Hacked Gadgets]





Two Euros Machine Makes Donations Fun

Alex at Tinkerlog helped build this clever fundraising machine that takes a 2-Euro coin on a ride.

In January Kolle Rebbe, a German agency, asked if I could help them with their project. The idea was to have an interactive ad poster to collect money for Misereor, a german relief organization. The campaign is named “Mit 2€ viel bewegen”, which means something like “getting things moving with 2€”. You would donate a 2 Euro coin and the coin would travel through the poster, a bit like a marble in a marble machine. On the way to the bottom, the coin would trigger all kind of animations to show, what the money would be used for. Very cool idea!

The machine itself is cool, but I really like Alex’s behind-the-scenes shots of the installation in prototype form.




“Design For Hack” in Medicine

"Design For Hack" in Medicine / MacGyver nurses and Legos are helping us make MEDIKits for better health care. By Jose Gomez-Marquez

Medical aid is a good story. We’ve all seen articles about well-meaning groups donating X-ray machines and incubators to needy clinics in the developing world. What we don’t see are those same devices when they fail as little as six months later — or even dead on arrival — because they weren’t designed to operate in these environments.

Clinics in the developing world need Devices designed like Land Rovers: rugged, accessible, and easily repairable in the field.

About 90% of medical technology that reaches poor countries is hand-me-down equipment designed for first-world facilities. Expecting it to keep working is like expecting a used Rolls-Royce to survive the Paris-Dakar Rally. And after it malfunctions, it’s usually junked.

In response, some designers have felt that we need to send over cheaper versions of the high-end equipment, the equivalent of economy cars. But what these clinics really need are Land Rovers — devices designed to be rugged, accessible, and easily repairable in the field.

Using the Drug Delivery MEDIKit in Nicaragua.

Fortunately, increasing numbers of professionals in the medical equipment industry are becoming interested in applying this different design philosophy to devices aimed at developing countries. My lab at MIT, Innovations in International Health (IIH), is taking this approach even further, by getting everyday makers around the world to design and maintain their own medical technology.

MacGyver Health Care

In developed countries, we rarely think of modifying medical devices. Isn’t that the job of a professional? But in most of the developing world, doctors, nurses, and health care workers tinker with failing medical technology every day to fix it or make it work better.

These health hackers are often secretive about their solutions, however. The first time we saw a medical hack, it took us two hours to convince the nurse, Daniela Urbina, to show us how she had fixed the cracked diaphragm of her stethoscope. A young woman from central Nicaragua, she had experimented with various plastics to replace it, and settled on leftover overhead transparency material cut into a circle and taped inside. It wasn’t pretty, but it worked. We quickly dubbed her a MacGyver nurse.

It’s tragic that Daniela wasn’t proud of her innovation. But in the IIH lab at MIT, we’re developing MEDIKits (Medical Education Design and Invention Kits), construction sets designed to encourage invention among doctors and nurses in the field.

MEDIKits: Designed for Hacking

Our MEDIKits currently come in five flavors: Drug Delivery, Lateral-Flow Diagnostics, Lab-on-Chip, Vital Signs, and Agricultural Prosthetics. The kits started as boxes of parts assembled to familiarize MIT students dents with medical devices, and evolved to include linear components that you can assemble like Lego bricks into a final device. Through the process, we developed a modular design language to help users see the underlying logic to connecting the parts, and added physical stops to keep some components within safe ranges of operation.

Nothing beats field experimentation to understand whether a kit works. In our case, we would run across the river to the Boston hospitals and share the kits with colleagues, and then fly to Nicaragua, open the box, and see what people would do with them. Each kit provided us with insights into the design of an invention space — which ultimately is what you want.

The Drug Delivery kit.

The Drug Delivery Kit was our first experiment. It’s divided into core devices: syringes, nebulizers, inhalers, transdermal patches, pills, and several other items you might find at your local pharmacy. Then we added modifier elements: color coding, shape coding, couplings, extenders, springs, plungers, compressors, tilt sensors, buzzers, timers, bicycle pumps, and template cutters. These items let users couple and change the functionality of the core devices within specific degrees of freedom. Finally, we added a healthy amount of consumable general-purpose materials: zip ties, velcro, adhesives, paper and plastic sheeting, tubing, needles, and respiratory masks. The last thing you want is for your users to start compromising the modifier’s safety limits because they ran out of tape.

We designed the limits of our early kits carefully, but when users began to snap on, extend, and test their creations, something emerged that we did not anticipate: they hacked our kits. It starts with someone asking permission to simply cut a piece of tubing and bypass our carefully designed coupling. Or taking a part they find in one kit and using it for another, for example, adding diagnostic tubing into a mechanism to disable syringes for safety. As users take ownership of a kit, you as the kit designer become less involved in training people how to use it.

So for the kit to be successful, you have to Design for Hack. And while it’s impossible to predict every type of device a kit can produce, you can start with a core set, add degrees of freedom to that core, and then anticipate and design areas in which those degrees will be hacked.

An Agricultural Prosthetics kit in use.

Our Agricultural Prosthetic MEDIKit is a good example. Some great organizations such as Jaipur Foot provide affordable prosthetics, but if you’re a farmer in the developing world today, and you have the misfortune of losing an arm, you’ll probably be given a plastic hand that’s aimed at looking good but not very functional (and there’s no way you’ll be able to afford a sensor-laden robot hand).

The Agricultural Prosthetic MEDIKit uses a universal gripper made from PVC, bicycle inner tubes, and a soda bottle to attach most farm tools onto the arm or forearm of an amputee farmer. Each part of the kit follows the same three principles: core device, modifier device, and consumables.

Since the price of all three is so small, users have no problem in modifying the core components to make them work better. One person did away with the MIT-designed inner tube, and simply cut a notch in the PVC joints to let the excess tubing out of the way, creating a sling to carry the whole thing. And instead of using the shorter parts provided, they quickly attached long pieces such as broomsticks and telescoping fruit pickers.

Languages of Design

If you’ve ever tried to explain over the phone something like how to replace a headlamp in a foreign car, you know how frustrating it is to lack a language of design. “The little plastic knob with screws … yes I understand there are four knobs, try the first one….”

The PuzzleDx kit design for Lateral-Flow Diagnostics.

The PuzzleDx kit’s diagnostic puzzle pieces.

We realized that many of the components we included in the kit might be foreign to their users: English-language labels, injection-molded parts, tiny inhaler mechanisms, reagent combinations. To avoid confusion, we created a Language of Design, a way of color-coding each component in a logical manner so that people can identify its function immediately, and share their designs simply by describing the sequence of coded parts, and not the often-intricate mechanisms themselves.

Our PuzzleDx kit does that in a fun way for Lateral Flow Diagnostics, the class of absorbent paper-based diagnostics that includes pregnancy tests. These tests contain three components: a sample, a reagent pad, and a paper pad that collects excess fluid. We knew we couldn’t give users a crash course in chemical diagnostics so they could pipette their own reagent combinations on blank pieces of reagent paper. But we could get them to put together puzzle pieces in a sequence that would make sense.

The modular Lab-on-Chip kit.

So we color-coded different puzzle pieces according to the reagent paper contained within and cut slots in the pieces to connect the sample collection and reagent papers when the puzzle pieces were joined. By sharing the types of color combinations and the order in which they’re connected (which can be as easy as snapping a picture on a cellphone), users can easily re-create experiments without having to publish a formal protocol.

Lab-on-Chip microfluidics modules on Lego bases.

By using Languages of Design, you encourage communication across your user communities, facilitate understanding, crowdsource patterns of inventive behavior, and allow recognition of those patterns. If the Flickr MEDIKit group is getting filled with pictures of prototype combinations with the Yellow, Green, and Blue reagent blocks, it may mean that manufacturing engineers should really start looking at mass-producing glucose, ketones, and human chorionic gonadotropin combinations.

When was the last time your pregnancy test did that?

Toys: Local and Globally Available Materials

A toy helicopter has a rack and pinion mechanism. A toy Ferris wheel turned on its side is an excellent centrifuge. A scrapbooking vinyl cutter is a pretty good CNC machine for making microfluidic channels. Makers have made repurposing materials a competitive sport, and health hacks are no exception. While many of the parts in our kits come prepackaged, we’ve also seen our users find and invent locally available replacements and accessories from toys.

Now, when we go into a toy store, we see a mechanism paradise. Toys make up an amazing supply chain of cheap plastic and electronic mechanisms with fairly good tolerances for most medical applications. Early on, our team was intrigued by what we call the glucometer and the Gameboy paradox. Both of these devices have equally complex electronics and comparable retail price points, but dramatically unequal distribution. I can find a handheld game console almost anywhere around the globe, even in very small towns in the developing world, but in Estelí, Nicaragua, 16 different clinics had to share a single glucometer.

Instead of trying to change the global supply chain for medical devices, we have learned to embrace the existing one for toys. Go to your toy store, and you’ll see the same $2 toy gun that a Nicaraguan nurse spotted and hacked into an alarm for an IV fluid bag, after harvesting the electronics and adding a simple trip mechanism. Lego blocks have very precise tolerances for creating modular microfluidic components. On the way out, toward the bicycle section, pick up a bike foot pump so you can power your nebulizer for $5 instead of paying $75 for the electric compressor sold in medical supply catalogs. Bonus feature: when there’s an asthma emergency in the middle of nowhere, you won’t need electricity to save the patient.

Trickle-Up Innovation

Places like Nicaragua have some of the poorest areas on the continent. But what about Nebraska? What about healthcare at home? For years, health technology has been shielded from tinkering and DIY invention because of the perceived barriers to entry: you’re not a doctor, you’re not a biomedical engineer, you require professional supervision. Health equipment has to be safe and rigorously tested, first
and foremost.

All true, but along the way, that message got blurred with professional requirements that are not answering our need to make healthcare affordable. Try to buy a simple pillbox that lets you know when grandma took her pills: some are several hundred dollars. Makers build bird feeders that have the same functionality for a fraction of the cost. A surgical sterilizer costs $1,000–$8,000. But Anna Young got the same functionality by hacking a $30 pressure cooker and adding some DIY solar technology. A $30,000 incubator? Dr. Kris Olson made an incubator out of car parts for about $1,000.

Medical invention kits have the potential to lower many of these barriers and put health hacking back into the hands of users and of patients — the people who have the most to gain from affordable and elegant innovations. As the developing world gets a head start on DIY medical technologies, we’ll see many of those user-generated inventions make their way back to richer countries.

An Invitation

As skyrocketing healthcare costs converge with the democratization of making, many more people will hack health. Whether it’s putting RFID stickers on pill bottles to help patients take their pills on time, or hacking bike pumps and scrapbook cutters, health is filled with fantastic challenges. You can make a difference whether or not you work in healthcare.

If you’re a maker thinking about hacking health, or someone in healthcare thinking about creating something tangible, I invite you to try it.

Medical devices are very tangible things. One of the reasons I got into the field is because I knew I could create things that you can hold in your hand, give to someone else, and make a positive difference. If you’re a maker thinking about hacking health, or someone in healthcare thinking about creating something tangible, I invite you to try it. Start with a kit or a toy, and you’ll find a community that is eager to embrace your creations. We might even hack them, and we might even heal someone.

Jose Gomez-Marquez hacks health for the developing world at the Little Devices lab and Innovations in International Health at MIT. He is the founder of LDTC+Labs and can often be found in toy stores around the world. He contributes to the MAKE blog.

Previously: How Toys Can Save Lives on CNN’s The Next List This Sunday (April 1)


This article first appeared in the MAKE Ultimate Kit Guide 2012.

Make: Ultimate Kit Guide

Make: Ultimate Kit Guide 2012 brings you top kits of all kinds, from beginner’s crafts to wooden kayaks to advanced robotics and everything in between! Whether you need a gift for the do-it-yourselfer who loves making things, or want to find the best kits to build yourself, this special issue will show you the way, with reviews of 175+ kits selected by the editors of MAKE.

>> Buy at Maker Shed, in Print or PDF .





iPhone Geiger Counter Module

Rick Pannen designed the case for his iPhone-mountable Geiger counter in FreeCAD, milled it out of a solid block of polyoxymethylene (aka “acetal”), and loaded it with a custom-milled PCB and a surplus SI-29BG Russian Geiger-Müller tube from eBay. The circuit itself was designed by BroHogan of DIYGeigerCounter, and it interfaces with the phone through the audio jack. The software is ND Apps’ Geiger Bot. Rick describes this as a “first prototype.” Can’t wait to see the next one! [Thanks, Rick!]

iPhone Geiger counter

More:

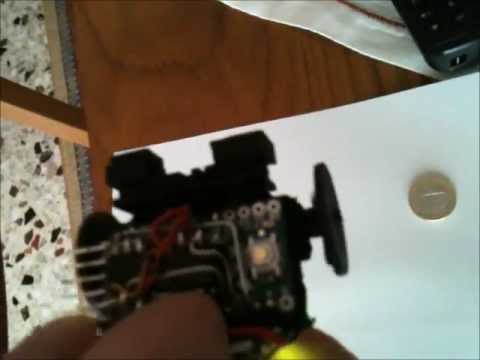

Micro Robot Packs an Arduino, Rolls Autonomously

This mini bot features an Arduino Pro Mini, a L293D dual H-bridge motor driver chip, and a IR proximity sensor. The bot rolls with the help of two servo-controlled wheels with a ball bearing roller on one side to keep it balanced.

Micro Robot, via GRobot.gr (Google translated!)




Bones of Blue Plasma

Embodiment is just one of a striking series of skeletal krypton discharge lamps from sculptor Eric Franklin.  Franklin’s work makes a nice compliment to Jessica Lloyd-Jones’ neon organs, which we posted about last week.  [via adafruit]

Eric Franklin – Luminous Glass sculpture

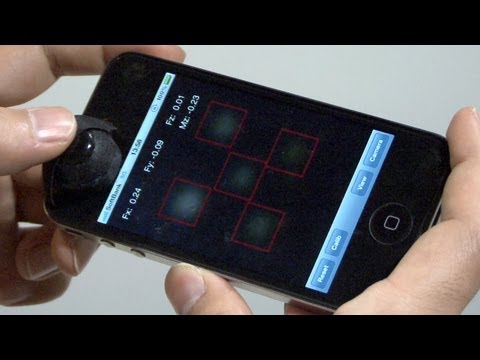

Mobile Optical 3-Axis Analog Joystick

Using visual markers embedded in an elastic button and some computer vision chops, researchers from Keio University have developed a unique 3-axis joystick that uses a front-facing camera opposed to the standard capacitive touch interface found on most smartphones and tablets. [via Technabob]




DIY Adjustable Desk Lamp

Utrecht area maker Tim Castelijn built this adjustable desk lamp from a stainless steel salad bowl and parts liberated from an old bed frame. [via Ikeahackers]
